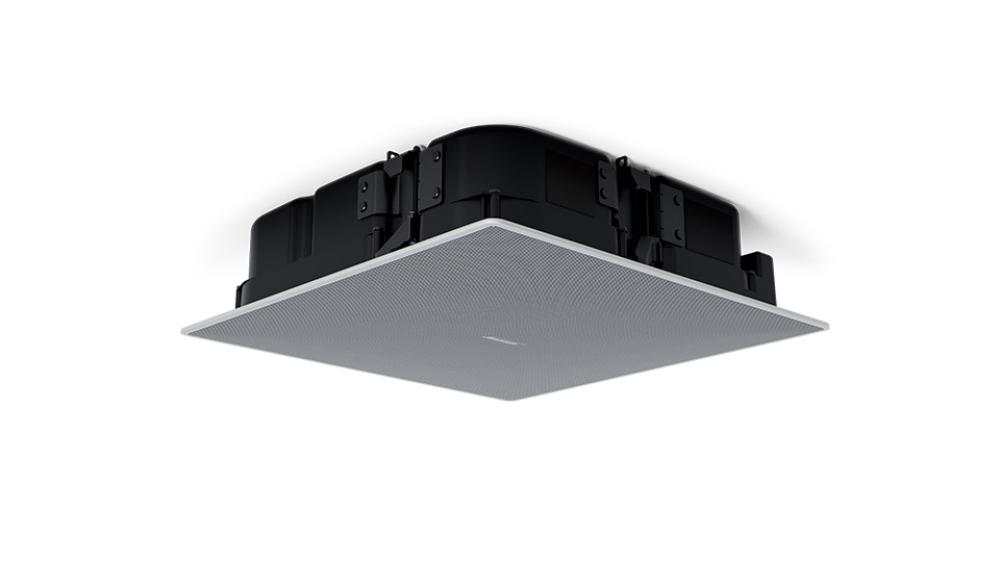

سماعات بوز 125 واط Edge Max EM90

Technical Specifications

• Safety Standard Compliance: UL1480A, UL2043
• Available colours: White (paintable, similar to RAL 9003)
• Piece Dimensions: 13.6 x 13.6 x 9.3 inches (345 x 345 x 236 mm)
• Net Weight: 22.2 lbs (10.1 kg) with net
• Speaker Dimensions (H x W x D): 13.4 x 13.4 x 9.8 inches (339 x 339 x 249 mm)
• Shipping Weight: 29.0 lbs (12.5 kg)
• Horizontal coverage: 90 degrees
• Vertical coverage: 75 degrees
• Frequency response (-10dB): 45Hz – 20,000Hz
• Maximum sound pressure at 1 meter: 117 dB continuous, 123 dB peak
• Nominal resistance: 8 ohms (with transformer bypass)
• Continuous power: 125W
• Maximum power: 500W
• Sensitivity (1W at 1m): 96dB
• Switching points (70/100V): 2.5W, 5W, 10W, 20W, 40W, 80W, with bypass
• Crossover frequency: 1 kHz
• Protection: High pass protection at 55Hz with 12dB/octave filter is recommended.
• High Frequency Motor: 1 x 1.3" (33mm) compression motor
• Low Frequency Driver: 1 x 8" (203mm) woofer with 1.5" 38mm voice coil
